10161957 | Fischer Elektronik

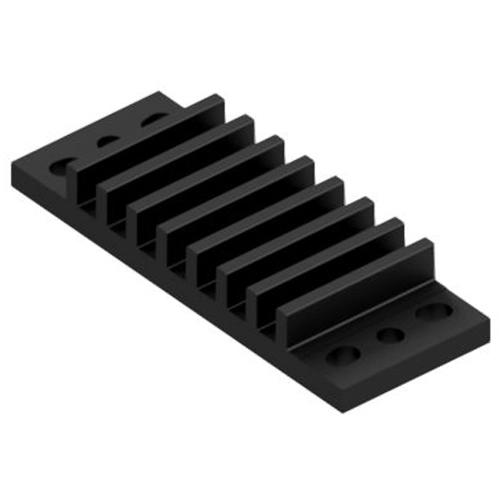

Extruded heatsink, (L x W x H) 22.9 x 61 x 8.9 mm, 12.8 to 3.3 K/W, black anodized, 10161957
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.0325 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
8.03 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0325 €
10 pcs.
7.5327 €
50 pcs.
7.0924 €
100 pcs.
6.7830 €
*incl. VAT plus shipping costs
Subject to prior sale
Extruded heatsink for DC/DC converter, 10161957, Fischer Elektronik
Extruded Heatsink for DC/DC Converter SK DC in 22,9 mm x 61 mm x 8.9 mm. Surface black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 3.3 K/W | |
| Max. heat resistance | 12.8 K/W | |
| Length | 22.9 mm | |
| Width | 61 mm | |
| Height | 8.9 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | 1/8 Brick |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85429000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
