V10H50AUTO | Littelfuse
Varistor, radial, VV 82 V, 2500 A, 65 V (DC), 50 V (AC), 8 J, V10H50AUTO
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 22 Weeks

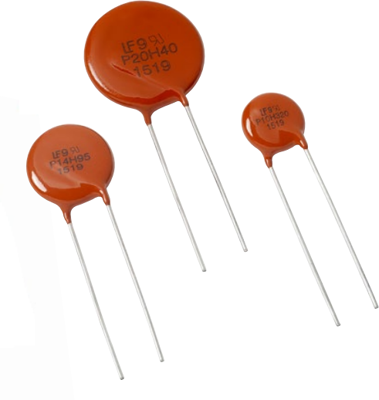

Varistor, V10H50AUTO, Littelfuse
V10H50AUTO is a Silicone Coated, Radial Leaded Varistor designed for automotive applications requiring load dump, jump start and surge voltage transient protection. The V10H50AUTO offers great surge withstanding capability for low DC voltage applications.
Features
- Reduced footprint and volume required for voltage surge protection
- Lead-free, halogen-free, and RoHS compliant
- Meets the stringent quality standards of AEC-Q200
Applications
- Body electronics systems
- Powertrain systems
- Infotainment system
- Automotive control module protection
- Motor or inductive load transient suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 8.5 mm | |
| Varistor Voltage Type | 82 V | |
| Rated voltage (DC) | 65 V | |
| max. operating temperature | 125 °C | |
| Rated voltage (AC) | 50 V | |
| max. Surge current, transient (8/20 µs) | 2500 A | |
| min. operating temperature | -40 °C | |
| Energy absorption | 8 J | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85334090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
