PISA2816-102M-04 | Fastron

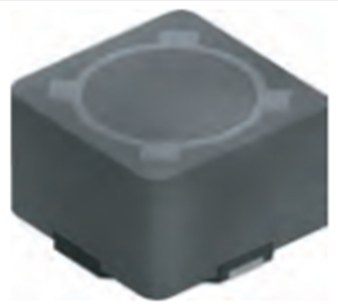

Power choke, SMD 2816, 1000 µH, 0.18 A, PISA2816-102M-04
Unit Price (€ / pc.)
1.3804 € *
Available: 0 pcs.
Available in 4 Days: 700 pcs.
Leadtime: 18 Weeks **
Shielded surface mount, PISA2816-102M-04, Fastron
Power inductor PISA2816-102M-04 can withstand a wide temperature range. The inductance value is suitable for high rated currents. This product has a high reliability and can be assembled by surface mount technology. Low DC resistance keeps power losses to a minimum. It is also suitable for filtering of supply voltages, coupling, decoupling, automotive electronics and network switching systems.
Applications
- This component is widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
| Version | Leistungsdrossel | |
| Design | SMD 2816 | |
| Width | 7.5 mm | |
| DC current | 0.18 A | |
| DC resistance | 6000 mΩ | |
| Height | 4.7 mm | |
| Inductance | 1000 µH | |
| Length | 7.5 mm | |
| Measuring frequency | 1 kHz | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Rolle mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
