PISA2816-680M-04 | Fastron

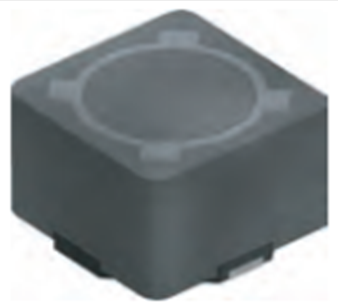

Power choke, SMD 2816, 68 µH, 0.69 A, PISA2816-680M-04

default S
default L
Total price
(1.29 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
100 pcs.
1.29 €
*incl. VAT plus shipping costs
Description

Product by Fastron at Bürklin Elektronik

Shielded surface mount, PISA2816-680M-04, Fastron

Power inductor PISA2816-680M-04 can withstand a wide temperature range. The inductance value is suitable for high rated currents. This product has a high reliability and can be assembled by surface mount technology. Low DC resistance keeps power losses to a minimum. It is also suitable for filtering of supply voltages, coupling, decoupling, automotive electronics and network switching systems.

Applications

  • This component is widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
Version power choke
Design SMD 2816
Width 7.5 mm
DC current 0.69 A
DC resistance 0.38 Ω
Height 4.7 mm
Inductance 0.068 mH
Length 7.5 mm
Measuring frequency 0.001 MHz
Tolerance ±20 %
Show similar products (0)
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 100 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 6/10/22
SVHC free Yes
Variations
1 item with 28 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Power choke, SMD 2816, 680 µH, 0.22 A, PISA2816-681M-04
Order No.:
 79D5495
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-681M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.68 mH
0.22 A
4.63 Ω
Power choke, SMD 2816, 330 µH, 0.32 A, PISA2816-331M-04
Order No.:
 79D5506
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-331M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.33 mH
0.32 A
1.86 Ω
Power choke, SMD 2816, 12 µH, 1.71 A, PISA2816-120M-04
Order No.:
 79D5519
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-120M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.012 mH
1.71 A
0.058 Ω
Power choke, SMD 2816, 220 µH, 0.36 A, PISA2816-221M-04
Order No.:
 79D5511
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-221M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.22 mH
0.36 A
1.17 Ω
Power choke, SMD 2816, 4.7 µH, 2 A, PISA2816-4R7M-04
Order No.:
 79D5499
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-4R7M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.0047 mH
2 A
0.045 Ω
Power choke, SMD 2816, 33 µH, 0.96 A, PISA2816-330M-04
Order No.:
 79D5507
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-330M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.033 mH
0.96 A
0.17 Ω
Power choke, SMD 2816, 3.3 µH, 2 A, PISA2816-3R3M-04
Order No.:
 79D5502
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-3R3M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.0033 mH
2 A
0.045 Ω
Power choke, SMD 2816, 82 µH, 0.61 A, PISA2816-820M-04
Order No.:
 79D5494
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-820M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.082 mH
0.61 A
0.43 Ω
Power choke, SMD 2816, 150 µH, 0.46 A, PISA2816-151M-04
Order No.:
 79D5515
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-151M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.15 mH
0.46 A
0.88 Ω
Power choke, SMD 2816, 1000 µH, 0.18 A, PISA2816-102M-04
Order No.:
 79D5520
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-102M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
1 mH
0.18 A
6 Ω
Power choke, SMD 2816, 22 µH, 1.23 A, PISA2816-220M-04
Order No.:
 79D5512
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-220M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.022 mH
1.23 A
0.11 Ω
Power choke, SMD 2816, 560 µH, 0.23 A, PISA2816-561M-04
Order No.:
 79D5497
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-561M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.56 mH
0.23 A
3.62 Ω
Power choke, SMD 2816, 180 µH, 0.42 A, PISA2816-181M-04
Order No.:
 79D5513
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-181M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.18 mH
0.42 A
0.98 Ω
Power choke, SMD 2816, 47 µH, 0.88 A, PISA2816-470M-04
Order No.:
 79D5501
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-470M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.047 mH
0.88 A
0.26 Ω
Power choke, SMD 2816, 18 µH, 1.31 A, PISA2816-180M-04
Order No.:
 79D5514
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-180M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.018 mH
1.31 A
0.091 Ω
Power choke, SMD 2816, 270 µH, 0.34 A, PISA2816-271M-04
Order No.:
 79D5509
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-271M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.27 mH
0.34 A
1.64 Ω
Power choke, SMD 2816, 820 µH, 0.2 A, PISA2816-821M-04
Order No.:
 79D5493
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-821M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.82 mH
0.2 A
5.2 Ω
Power choke, SMD 2816, 120 µH, 0.52 A, PISA2816-121M-04
Order No.:
 79D5518
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-121M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.12 mH
0.52 A
0.66 Ω
Power choke, SMD 2816, 39 µH, 0.91 A, PISA2816-390M-04
Order No.:
 79D5505
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-390M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.039 mH
0.91 A
0.23 Ω
Power choke, SMD 2816, 10 µH, 1.84 A, PISA2816-100M-04
Order No.:
 79D5522
Manufacturer:
 Fastron
Manufacturer SKU
 PISA2816-100M-04
100 pcs.
1.29 €
0.00 € *
Currently not in stock, we will order for you
SMD 2816
power choke
7.5 mm
7.5 mm
±20 %
4.7 mm
0.01 mH
1.84 A
0.052 Ω
*incl. VAT plus shipping costs
