1206F-100K-01 | Fastron
RF choke, SMD 1206, 10 µH, 200 mA, 1206F-100K-01
Unit Price (€ / pc.)
0.8330 € *
Available: 2,601 pcs.
Leadtime: 10 Weeks **
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.5236 €
50 pcs.
0.4284 €
250 pcs.
0.3570 €
1000 pcs.
0.3070 €
*incl. VAT plus shipping costs
**Subject to prior sale

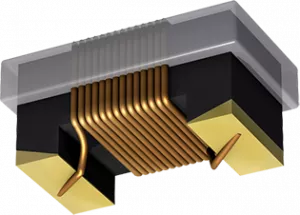

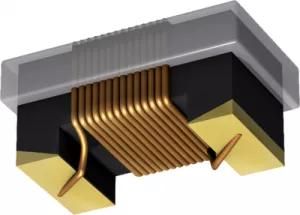

RF inductor, 1206F-100K-01, FASTRON
The 1206F-100K-01 is a chip inductor with wire wound-open that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.
Applications
- LC resonant circuits
- Mobile telecommunication
- Automotive subsystems
- Wireless communication
Technical specifications
| Version | RF choke | |
| Design | SMD 1206 | |
| Width | 2.5 mm | |
| DC current | 200 mA | |
| DC resistance | 4 Ω | |
| Quality Q | Q 25 | |
| Height | 1.6 mm | |
| Inductance | 10 µH | |
| Length | 4 mm | |
| Measuring frequency | 7.9 MHz | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
