1206F-6R8K-08 | Fastron
RF choke, SMD 1206, 6.8 µH, 240 mA, 1206F-6R8K-08
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.8449 € *
Available: 150 pcs.
Total Price:
4.22 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8449 €
25 pcs.
0.7140 €
125 pcs.
0.6069 €
500 pcs.
0.5355 €
1000 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale

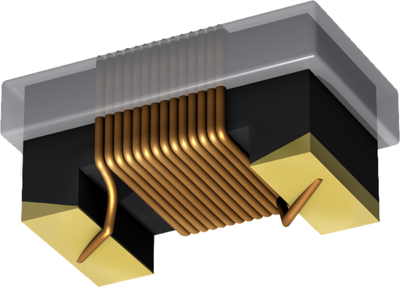

RF inductor, 1206F-6R8K-08, FASTRON
The 1206F-6R8K-08 is a chip inductor with wire wound-open that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.
Applications
- LC resonant circuits
- Mobile telecommunication
- Automotive subsystems
- Wireless communication
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | RF choke | |
| Inductance | 6.8 µH | |
| DC current | 240 mA | |
| Tolerance | ±10 % | |
| DC resistance | 2.8 Ω | |
| Measuring frequency | 7.9 MHz | |
| Quality Q | Q 25 | |

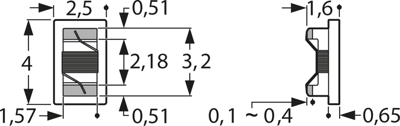

| Design | SMD 1206 | |
| Length | 4 mm | |
| Width | 2.5 mm | |
| Height | 1.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
