07HVP-471K-51 | Fastron
Suppressor choke, radial, 470 µH, 580 mA, 07HVP-471K-51
Unit Price (€ / pc.)
0.7259 € *
Available in 4 Days: 300 pcs. - if ordered today
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7259 €
10 pcs.
0.6783 €
100 pcs.
0.6426 €
500 pcs.
0.6069 €
1000 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale

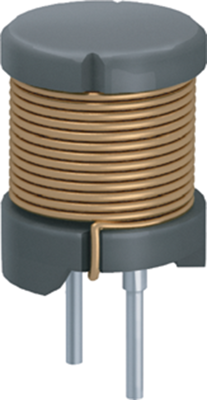

Pluggable inductors, type Fastron 07HVP.
Radial connections, AEC-Q200 tested
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC resistance | 1.18 Ω | |
| Tolerance | ±10 % | |
| DC current | 580 mA | |
| Measuring frequency | 1 kHz | |
| Version | suppressor choke | |
| Design | radial | |

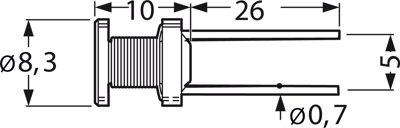

| Length | 10 mm | |
| Inductance | 470 µH | |
| Saturation current | 750 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1 piece |
| Country of origin | MY |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
