07HCP-470M-50 | Fastron

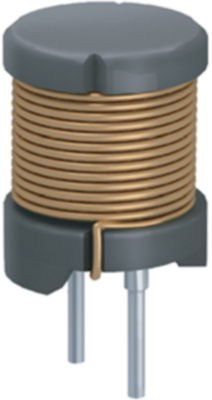

Suppressor choke, radial, 47 µH, 1.3 A, 07HCP-470M-50
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4641 €
100 pcs.
0.4403 €
500 pcs.
0.4165 €
1000 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor inductor, 07HCP-470M-50, FASTRON
The 07HCP-470M-50 is a plugable inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Features
- High rated current
- High Q
Applications
- DC/DC converters
- Digital amplifier LPF
- Signal filtering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 47 µH | |
| Length | 10 mm | |
| Saturation current | 2.5 A | |
| Design | radial | |
| DC resistance | 100 mΩ | |
| Tolerance | ±20 % | |
| DC current | 1.3 A | |
| Measuring frequency | 1 kHz | |
| Version | suppressor choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Carton with 500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
