07HCP-1R0M-50 | Fastron

Suppressor choke, radial, 1 µH, 7.5 A, 07HCP-1R0M-50

Order No.: 74D3700
EAN: 4099889010442
MPN:
07HCP-1R0M-50
Series: 07HCP

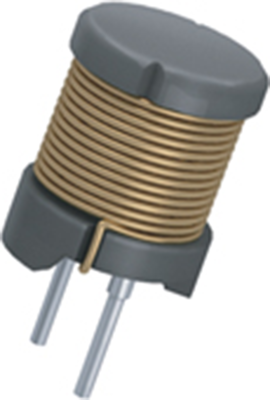

07HCP-1R0M-50 Fastron Fixed Inductors Image 1
07HCP-1R0M-50 Fastron Fixed Inductors Image 2
07HCP-1R0M-50 Fastron Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
58.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
0.5831 €

Suppressor inductor, 07HCP-1R0M-50, FASTRON

The 07HCP-1R0M-50 is an inductor that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.

Features

  • High Q
  • High current
  • High voltage

Applications

  • DC-DC converter
  • Digital amplifier LPF
  • Signal filtering
Technical specifications
Filter Property Value
Inductance 1 µH
DC current 7.5 A
DC resistance 7 mΩ
Design radial
Version suppressor choke
Saturation current 10 A
Tolerance ±20 %
Measuring frequency 1 kHz
Length 10 mm
Logistics
Property Value
Country of origin MY
Original Packaging Carton with 500 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
