ATV950D45N4EU | Schneider Electric

Frequency converter, 3-phase, 45 kW, 480 V, 88 A for synchronous/asynchronous motors, ATV950D45N4EU

Order No.: 06N0662
EAN: 3606481284501
MPN:
ATV950D45N4EU
ATV950D45N4EU Schneider Electric Variable speed drive and Accessories
Image may differ
Unit Price (€ / pc.)
6,653.3257 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
6,653.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6,653.3257 €

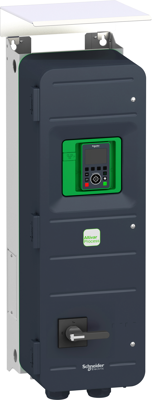

Frequency converter, ATV950D45N4EU, Schneider Electric

The altivar process ATV900/ATV950 is a variable speed drive with a power rating of 45kW (60hp) and is designed to operate within a voltage range of 380 to 480V. It is built with an IP55 enclosure and is UL type12 certified, and also includes a disconnect switch for added safety and convenience.

Technical specifications
Version frequency converter
Suitable for synchronous/asynchronous motors
Power 45 kW
Number of phases 3
Rated voltage 480 V
Output current 88 A
Width 290 mm
Height 910 mm
Depth 401 mm
Logistics
Country of origin CN
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
