V10H625AUTO | Littelfuse
Varistor, radial, VV 1000 V, 3500 A, 825 V (DC), 625 V (AC), 110 J, V10H625AUTO
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 22 Weeks

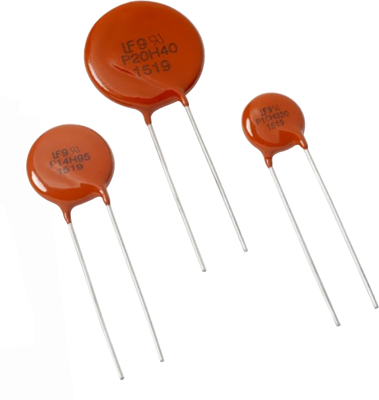

Varistor, V10H625AUTO, Littelfuse
V10H625AUTO is a Silicone Coated, Radial Leaded Varistor designed for automotive applications requiring load dump, jump start and surge voltage transient protection. The V10H625AUTO offers great surge withstanding capability for low DC voltage applications.
Features
- Reduced footprint and volume required for voltage surge protection
- Lead-free, halogen-free, and RoHS compliant
- Meets the stringent quality standards of AEC-Q200
Applications
- Body electronics systems
- Powertrain systems
- Infotainment system
- Automotive control module protection
- Motor or inductive load transient suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 625 V | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| max. Surge current, transient (8/20 µs) | 3500 A | |
| Grid | 8.5 mm | |
| Design | radial | |
| Varistor Voltage Type | 1000 V | |
| Energy absorption | 110 J | |
| Rated voltage (DC) | 825 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334090 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
