PISNHV-103M-04 | Fastron

Power choke, SMD, 10 mH, 150 mA, PISNHV-103M-04

Order No.: 74D4986
EAN: 4099889012873
MPN:
PISNHV-103M-04
Series: PISNHV

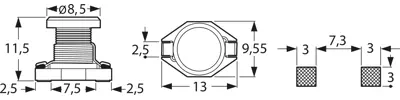

PISNHV-103M-04 Fastron Fixed Inductors Image 1

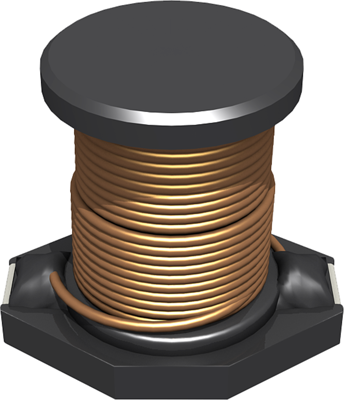

PISNHV-103M-04 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
2.0230 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0230 €
10 pcs.
1.7731 €
100 pcs.
1.5232 €
500 pcs.
1.3209 €
1000 pcs.
1.2019 €
*incl. VAT plus shipping costs
Subject to prior sale

Power inductor, PISNHV-103M-04, FASTRON

The PISNHV-103M-04 is a SMD power inductor which stores energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.

Features

  • Wide temperature range
  • High reliability
  • High rated currents

Applications

  • Filtering of supply voltages, coupling, decoupling
  • Automotive electronics
  • Network switching systems
  • DC/DC converters
Technical specifications
Filter Property Value
Measuring frequency 100 kHz
Design SMD
DC current 150 mA
Inductance 10 mH
Version power choke
Length 13 mm
Tolerance ±20 %
Saturation current 240 mA
Height 5.35 mm
DC resistance 18.77 Ω
Width 9.55 mm
Logistics
Property Value
Customs tariff number 85045000
Country of origin MY
Original Packaging Reel with 250 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
