PISMHV-151M-04 | Fastron

Power choke, SMD, 150 µH, 1.1 A, PISMHV-151M-04

Order No.: 74D4968
EAN: 4099889012835
MPN:
PISMHV-151M-04
Series: PISMHV
PISMHV-151M-04 Fastron Fixed Inductors Image 1
PISMHV-151M-04 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.6541 €
100 pcs.
1.4161 €
500 pcs.
1.2257 €
1000 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale

Power inductor, PISMHV-151M-04, FASTRON

The PISMHV-151M-04 is a SMD power inductor which stores energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.

Features

  • Wide temperature range
  • High reliability
  • High rated currents

Applications

  • Filtering of supply voltages, coupling, decoupling
  • Automotive electronics
  • Network switching systems
  • DC/DC converters

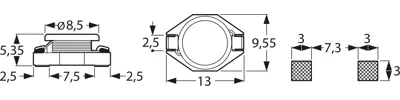

Technical specifications
Filter Property Value
Measuring frequency 100 kHz
Design SMD
DC current 1.1 A
Inductance 150 µH
Version power choke
Length 13 mm
Tolerance ±20 %
Saturation current 850 mA
Height 5.35 mm
DC resistance 405 mΩ
Width 9.55 mm
Logistics
Property Value
Customs tariff number 85045000
Country of origin MY
Original Packaging Reel with 750 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
