PISA2816-330M-04 | Fastron

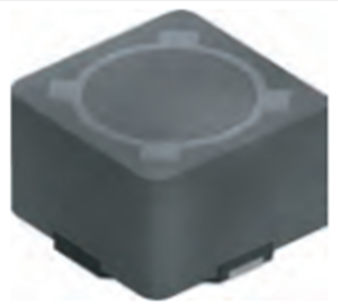

Power choke, SMD 2816, 33 µH, 0.96 A, PISA2816-330M-04

Order No.: 79D5507
EAN: 4099891560829
MPN:
PISA2816-330M-04
Series: PISA2816
PISA2816-330M-04 Fastron Fixed Inductors
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Available in 4 Days: 502 pcs. - if ordered today
Total Price:
1,380.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
1.3804 €

Shielded surface mount, PISA2816-330M-04, Fastron

Power inductor PISA2816-330M-04 can withstand a wide temperature range. The inductance value is suitable for high rated currents. This product has a high reliability and can be assembled by surface mount technology. Low DC resistance keeps power losses to a minimum. It is also suitable for filtering of supply voltages, coupling, decoupling, automotive electronics and network switching systems.

Applications

  • This component is widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
DC current 0.96 A
Width 7.5 mm
Height 4.7 mm
Length 7.5 mm
DC resistance 170 mΩ
Measuring frequency 1 kHz
Version power choke
Design SMD 2816
Tolerance ±20 %
Inductance 33 µH
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
