242408FPS-470M-01 | Fastron

Power choke, SMD 2424, 47 µH, 800 mA, 242408FPS-470M-01

Order No.: 75D6332
EAN: 4099889041194
MPN:
242408FPS-470M-01
Series: 242408FPS
Fastron

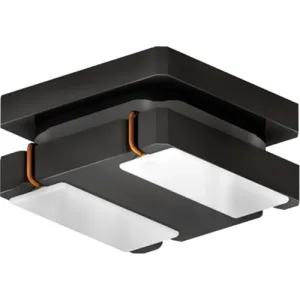

242408FPS-470M-01 Fastron Fixed Inductors Image 1
242408FPS-470M-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Available in 4 Days: 1,200 pcs.
Leadtime: 1 Week **
Total Price:
0.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.4046 €

SMD Shielded inductor, 242408FPS-470M-01, Fastron

This Inudctor provides good solderability with lead free tinned Terminals and is RoHS compliant. Suitable for circuits where high current saturation is critical. When small size matters, only 1.5 mm and higher profile for DC/DC converters e.g in portable devices or backlight for tablet displays.

Features

  • High flux density ferrite core
  • Magnetically shielded with a ferrite-epoxy resin
Technical specifications
Version power choke

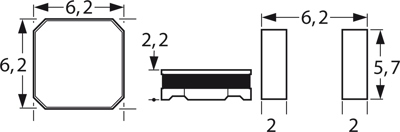

Design SMD 2424
Width 6.2 mm
DC current 800 mA
DC resistance 444 mΩ
Height 2.2 mm
Inductance 47 µH
Length 6.2 mm
Measuring frequency 100 kHz
Saturation current 800 mA
Tolerance ±20 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Bulk with 1 piece
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
