1206F-100K-01 | Fastron
RF choke, SMD 1206, 10 µH, 200 mA, 1206F-100K-01
Unit Price (€ / pc.)
0.6902 € *
Available: 1,166 pcs.
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6902 €
10 pcs.
0.4403 €
50 pcs.
0.3570 €
250 pcs.
0.2975 €
1000 pcs.
0.2559 €
*incl. VAT plus shipping costs
Subject to prior sale

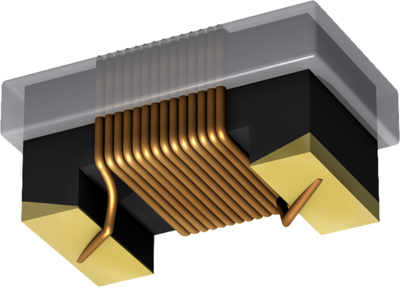

RF inductor, 1206F-100K-01, FASTRON
The 1206F-100K-01 is a chip inductor with wire wound-open that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.
Applications
- LC resonant circuits
- Mobile telecommunication
- Automotive subsystems
- Wireless communication

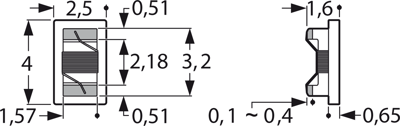

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 4 mm | |
| DC current | 200 mA | |
| Height | 1.6 mm | |
| Inductance | 10 µH | |
| Quality Q | Q 25 | |
| Measuring frequency | 7.9 MHz | |
| Width | 2.5 mm | |
| Design | SMD 1206 | |
| DC resistance | 4 Ω | |
| Version | RF choke | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 2,000 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
