07HCP-471K-50 | Fastron

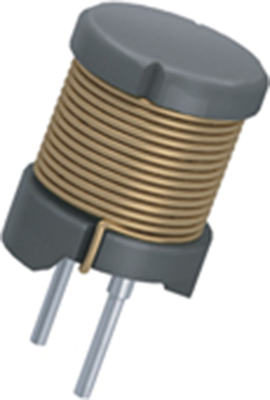

Suppressor choke, radial, 470 µH, 430 mA, 07HCP-471K-50
Unit Price (€ / pc.)
0.6069 € *
Available in 4 Days: 501 pcs. - if ordered today
Suppressor inductor, 07HCP-471K-50, FASTRON
The 07HCP-471K-50 is an inductor that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.
Features
- High Q
- High current
- High voltage
Applications
- DC-DC converter
- Digital amplifier LPF
- Signal filtering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 470 µH | |
| Version | suppressor choke | |
| Measuring frequency | 1 kHz | |
| DC resistance | 890 mΩ | |
| Saturation current | 800 mA | |
| Tolerance | ±10 % | |

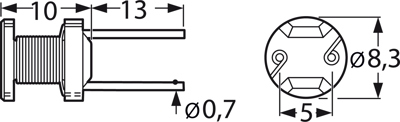

| Design | radial | |
| Length | 10 mm | |
| DC current | 430 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | MY |
| Original Packaging | Carton with 400 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
