PISMHV-470M-04 | Fastron
Power choke, SMD, 47 µH, 1.64 A, PISMHV-470M-04
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.6541 €
100 pcs.
1.4161 €
500 pcs.
1.2257 €
1000 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale
Power inductor, PISMHV-470M-04, FASTRON
The PISMHV-470M-04 is a SMD power inductor which stores energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.
Features
- Wide temperature range
- High reliability
- High rated currents
Applications
- Filtering of supply voltages, coupling, decoupling
- Automotive electronics
- Network switching systems
- DC/DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Measuring frequency | 100 kHz | |
| Design | SMD | |
| DC current | 1.64 A | |
| Inductance | 47 µH | |
| Version | power choke | |

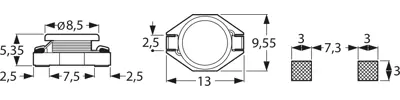

| Length | 13 mm | |
| Tolerance | ±20 % | |
| Saturation current | 1.5 A | |
| Height | 5.35 mm | |
| DC resistance | 145 mΩ | |
| Width | 9.55 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | MY |
| Original Packaging | Reel with 750 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
