PISM-680M-04 | Fastron

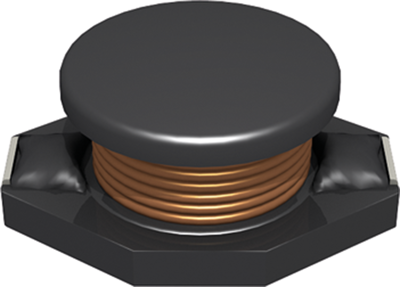

Power choke, SMD, 68 µH, 1.5 A, PISM-680M-04

Order No.: 74D4722
EAN: 4099889012293
MPN:
PISM-680M-04
Series: PISM
Fastron
default L
front L
Image may differ
Unit Price (€ / pc.)
1.3566 € *
Available: 160 pcs.
Leadtime: 18 Weeks **
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3566 €
10 pcs.
0.8449 €
50 pcs.
0.7497 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD Power inductor, PISM-680M-04, Fastron

Power Inductors (with tube/also shielded)-Surface Mount Type

Features

  • Power inductors can withstand a wide temperature range
  • The inductance values range from 1.0 µH to 10000 µH and they are suitable for high rated currents
  • They have a high reliability and can be assembled by surface mount technology
  • Their DC resistance keeps power losses to a minimum
  • They are also suitable for Filtering of supply voltages, Coupling, Decoupling, Automotive electronics and Network switching systems

Applications

  • These components are widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
Version power choke
Design SMD
Width 9.55 mm
DC current 1.5 A
DC resistance 0.19 Ω
Height 5.35 mm
Inductance 68 µH
Length 13 mm
Measuring frequency 100 kHz
Saturation current 1.5 A
Tolerance ±20 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 750 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Inductance
DC current
DC resistance
Design
Version
Width
Length
Tolerance
Height
1 item in 17 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Inductance
DC current
DC resistance
Design
Version
Width
Length
Tolerance
Height
Power choke, SMD, 4.7 µH, 4.9 A, PISM-4R7M-04
Order No.:
 74D4708
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-4R7M-04
Available: 0 pcs. Available in 4 Days: 640 pcs. Leadtime: 1 Week **
Total Price: 1.20 € *
750 pcs.
1.2019 €
4.7 µH
4.9 A
0.017 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 1 mH, 350 mA, PISM-102M-04
Order No.:
 74D4736
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-102M-04
Available: 0 pcs. Available in 4 Days: 1,300 pcs. Leadtime: 1 Week **
Total Price: 1.20 € *
750 pcs.
1.2019 €
1 mH
350 mA
2.7 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 330 µH, 650 mA, PISM-331M-04
Order No.:
 74D4730
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-331M-04
Available: 705 pcs. Available in 4 Days: 343 pcs. Leadtime: 1 Week **
Total Price: 19.99 € *
10 pcs.
1.9992 €
50 pcs.
1.7493 €
250 pcs.
1.5113 €
1000 pcs.
1.3209 €
2500 pcs.
1.2019 €
330 µH
650 mA
0.9 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 680 µH, 450 mA, PISM-681M-04
Order No.:
 74D4734
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-681M-04
Available: 0 pcs. Available in 4 Days: 526 pcs. Leadtime: 1 Week **
Total Price: 1.20 € *
750 pcs.
1.2019 €
680 µH
450 mA
2 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 100 µH, 1.2 A, PISM-101M-04
Order No.:
 74D4724
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-101M-04
Available: 483 pcs. Leadtime: 10 Weeks **
Total Price: 3.21 € *
1 pcs.
3.2130 €
10 pcs.
2.0111 €
50 pcs.
1.7612 €
750 pcs.
1.4042 €
1500 pcs.
1.3090 €
100 µH
1.2 A
0.28 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 68 µH, 1.5 A, PISM-680M-04
Order No.:
 74D4722
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-680M-04
Available: 160 pcs. Leadtime: 18 Weeks **
Total Price: 1.36 € *
1 pcs.
1.3566 €
10 pcs.
0.8449 €
50 pcs.
0.7497 €
68 µH
1.5 A
0.19 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 6.8 µH, 4.4 A, PISM-6R8M-04
Order No.:
 74D4710
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-6R8M-04
Available: 0 pcs. Available in 4 Days: 127 pcs. Leadtime: 1 Week **
Total Price: 1.20 € *
750 pcs.
1.2019 €
6.8 µH
4.4 A
22 mΩ
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 33 µH, 2.1 A, PISM-330M-04
Order No.:
 74D4718
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-330M-04
Available: 1,517 pcs. Available in 4 Days: 199 pcs. Leadtime: 1 Week **
Total Price: 3.20 € *
1 pcs.
3.2011 €
10 pcs.
1.9992 €
50 pcs.
1.7493 €
250 pcs.
1.5113 €
1000 pcs.
1.3209 €
33 µH
2.1 A
0.1 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 10 µH, 3.9 A, PISM-100M-04
Order No.:
 74D4712
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-100M-04
Available: 186 pcs. Leadtime: 10 Weeks **
Total Price: 17.14 € *
10 pcs.
1.7136 €
50 pcs.
1.5113 €
750 pcs.
1.2019 €
1500 pcs.
1.1186 €
3000 pcs.
1.0353 €
10 µH
3.9 A
0.036 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 1.5 µH, 6.5 A, PISM-1R5M-04
Order No.:
 74D4205
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-1R5M-04
Available: 0 pcs. Available in 4 Days: 29 pcs. Leadtime: 1 Week **
Total Price: 1.20 € *
750 pcs.
1.2019 €
1.5 µH
6.5 A
9 mΩ
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 15 µH, 3.2 A, PISM-150M-04
Order No.:
 74D4714
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-150M-04
Available: 63 pcs. Leadtime: 4 Weeks **
Total Price: 3.21 € *
1 pcs.
3.2130 €
10 pcs.
2.0111 €
50 pcs.
1.7612 €
750 pcs.
1.4042 €
1500 pcs.
1.3090 €
15 µH
3.2 A
0.05 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 220 µH, 850 mA, PISM-221M-04
Order No.:
 74D4728
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-221M-04
Available: 692 pcs. Leadtime: 3 Weeks **
Total Price: 3.21 € *
1 pcs.
3.2130 €
10 pcs.
2.0111 €
50 pcs.
1.7612 €
750 pcs.
1.4042 €
1500 pcs.
1.3090 €
220 µH
850 mA
0.6 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 47 µH, 1.7 A, PISM-470M-04
Order No.:
 74D4720
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-470M-04
Available: 666 pcs. Leadtime: 6 Weeks **
Total Price: 3.21 € *
1 pcs.
3.2130 €
10 pcs.
2.0111 €
50 pcs.
1.7612 €
750 pcs.
1.4042 €
1500 pcs.
1.3090 €
47 µH
1.7 A
0.14 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 150 µH, 1 A, PISM-151M-04
Order No.:
 74D4726
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-151M-04
Available: 386 pcs. Leadtime: 10 Weeks **
Total Price: 3.21 € *
1 pcs.
3.2130 €
10 pcs.
2.0111 €
50 pcs.
1.7612 €
750 pcs.
1.4042 €
1500 pcs.
1.3090 €
150 µH
1 A
0.42 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 3.3 µH, 5.5 A, PISM-3R3M-04
Order No.:
 74D4706
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-3R3M-04
Available: 0 pcs. Available in 4 Days: 530 pcs. Leadtime: 1 Week **
Total Price: 1.20 € *
750 pcs.
1.2019 €
3.3 µH
5.5 A
0.014 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 22 µH, 2.7 A, PISM-220M-04
Order No.:
 74D4716
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-220M-04
Available: 700 pcs. Leadtime: 5 Weeks **
Total Price: 3.21 € *
1 pcs.
3.2130 €
10 pcs.
2.0111 €
50 pcs.
1.7612 €
750 pcs.
1.4042 €
1500 pcs.
1.3090 €
22 µH
2.7 A
0.06 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
Power choke, SMD, 1 µH, 6.9 A, PISM-1R0M-04
Order No.:
 74D4700
Manufacturer:
 Fastron
Manufacturer SKU:
 PISM-1R0M-04
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 1.95 € *
1 pcs.
1.9516 €
10 pcs.
1.3923 €
100 pcs.
1.1900 €
500 pcs.
1.0353 €
1000 pcs.
0.9401 €
1 µH
6.9 A
0.008 Ω
SMD
power choke
9.55 mm
13 mm
±20 %
5.35 mm
