242408FPS-6R8M-01 | Fastron
Power choke, SMD 2424, 6.8 µH, 1.8 A, 242408FPS-6R8M-01
Unit Price (€ / pc.)
0.4165 € *
Available in 4 Days: 700 pcs. - if ordered today
Power inductor, 242408FPS-6R8M-01, FASTRON
The 242408FPS-6R8M-01 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Features
- Magnetically shielded
- RoHS Compliant
Applications
- High current saturation
- DC-DC converter inductor applications
- Portable devices
- Backlight for tablet displays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 1.8 A | |
| DC resistance | 72 mΩ | |
| Saturation current | 2 A | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±20 % | |

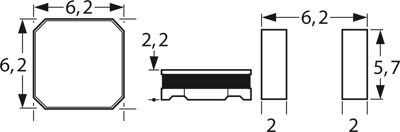

| Length | 6.2 mm | |
| Height | 2.2 mm | |
| Width | 6.2 mm | |
| Inductance | 6.8 µH | |
| Design | SMD 2424 | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bulk with 1 piece |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
