242408FPS-330M-01 | Fastron
Power choke, SMD 2424, 33 µH, 900 mA, 242408FPS-330M-01
Unit Price (€ / pc.)
0.8449 € *
Available in 4 Days: 3,311 pcs. - if ordered today
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
10 pcs.
0.5950 €
100 pcs.
0.5117 €
500 pcs.
0.4403 €
1000 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Shielded inductor, 242408FPS-330M-01, Fastron
This Inudctor provides good solderability with lead free tinned Terminals and is RoHS compliant. Suitable for circuits where high current saturation is critical. When small size matters, only 1.5 mm and higher profile for DC/DC converters e.g in portable devices or backlight for tablet displays.
Features
- High flux density ferrite core
- Magnetically shielded with a ferrite-epoxy resin
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 900 mA | |
| DC resistance | 372 mΩ | |
| Saturation current | 900 mA | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±20 % | |

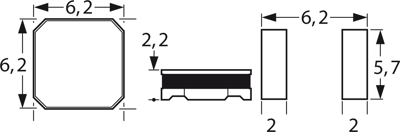

| Length | 6.2 mm | |
| Height | 2.2 mm | |
| Width | 6.2 mm | |
| Inductance | 33 µH | |
| Design | SMD 2424 | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bulk with 1 piece |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
