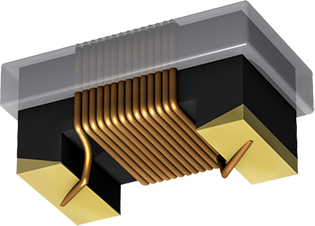

This wire wound chip inductor is designed for radio frequency (RF) applications that require optimal Q on high frequency circuits. Its gold flash pad metallization provides better solderability for a higher yield in production. Additionally, their encapsulation not only protects the winding but also allows for surface mount assembly.
Applications
Version | RF choke | |
Design | SMD 1206 | |
Width | 2.5 mm | |
DC current | 320 mA | |
DC resistance | 1.2 Ω | |
Quality Q | Q 25 | |
Height | 1.6 mm | |
Inductance | 1.5 µH | |
Length | 4 mm | |
Measuring frequency | 7.9 MHz | |
Tolerance | ±10 % |
Country of origin | MY |
Customs tariff number | 85045000 |
Original Packaging | Reel with 100 pieces |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
