1206F-180K-08 | Fastron
RF choke, SMD 1206, 18 µH, 130 mA, 1206F-180K-08
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3213 €
10 pcs.
0.2975 €
100 pcs.
0.2820 €
500 pcs.
0.2654 €
1000 pcs.
0.2535 €
*incl. VAT plus shipping costs
Subject to prior sale

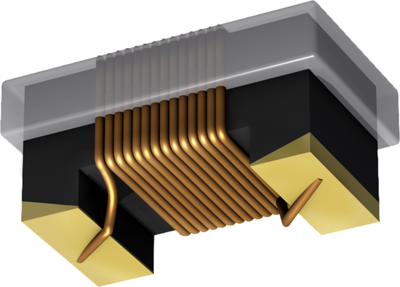

RF inductor, 1206F-180K-08, FASTRON
The 1206F-180K-08 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- Oscillator and signal generators
- Mobile telecommunication
- Automotive Subsystems
- Wireless communication

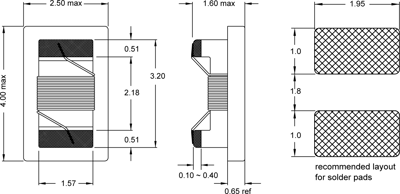

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 18 µH | |
| Length | 4 mm | |
| Design | SMD 1206 | |
| DC resistance | 9 Ω | |
| Tolerance | ±10 % | |
| DC current | 130 mA | |
| Width | 2.5 mm | |
| Quality Q | Q 16 | |
| Height | 1.6 mm | |
| Version | RF choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
