1206F-150K-08 | Fastron
RF choke, SMD 1206, 15 µH, 160 mA, 1206F-150K-08
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.3094 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3094 €
10 pcs.
0.2904 €
100 pcs.
0.2725 €
500 pcs.
0.2582 €
1000 pcs.
0.2451 €
*incl. VAT plus shipping costs
Subject to prior sale
RF inductor, 1206F-150K-08, FASTRON

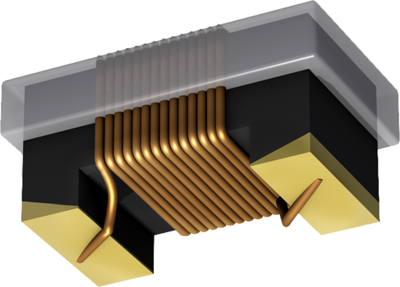

The 1206F-150K-08 is a chip inductor with wire wound-open that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.
Applications
- LC resonant circuits
- Mobile telecommunication
- Automotive subsystems
- Wireless communication
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | RF choke | |
| Inductance | 15 µH | |
| DC current | 160 mA | |
| Tolerance | ±10 % | |
| DC resistance | 8.2 Ω | |
| Measuring frequency | 2.5 MHz | |
| Quality Q | Q 16 | |

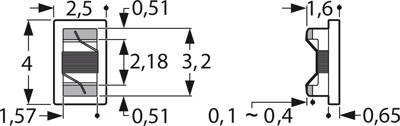

| Design | SMD 1206 | |
| Length | 4 mm | |
| Width | 2.5 mm | |
| Height | 1.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | MY |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
