09HCP-560M-50 | Fastron

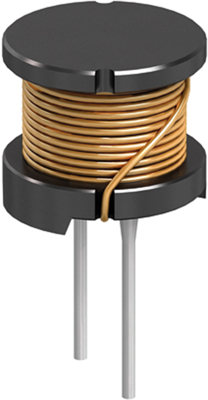

Suppressor choke, radial, 56 µH, 2.6 A, 09HCP-560M-50
Unit Price (€ / pc.)
1.2495 € *
Available in 4 Days: 100 pcs. - if ordered today
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
10 pcs.
1.0948 €
100 pcs.
0.9401 €
500 pcs.
0.8092 €
1000 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor inductor, 09HCP-560M-50, FASTRON
The 09HCP-560M-50 is a plugable inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Features
- High rated current
- High Q
Applications
- DC/DC converters
- Digital amplifier LPF
- Signal filtering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 2.6 A | |
| DC resistance | 62 mΩ | |
| Saturation current | 2.8 A | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±20 % | |

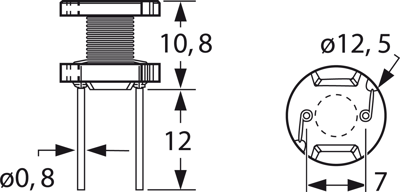

| Length | 10.8 mm | |
| Inductance | 56 µH | |
| Design | radial | |
| Version | suppressor choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Carton with 1 piece |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
