09HCP-102K-50 | Fastron

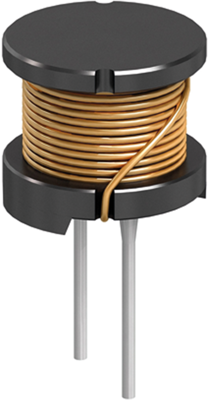

Suppressor choke, radial, 1 mH, 600 mA, 09HCP-102K-50
Unit Price (€ / pc.)
1.0234 € *
Standard delivery time from the manufacturer is: 18 Weeks
Suppressor inductor, 09HCP-102K-50, FASTRON
The 09HCP-102K-50 is a plugable inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Features
- High rated current
- High Q
Applications
- DC/DC converters
- Digital amplifier LPF
- Signal filtering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 600 mA | |
| DC resistance | 1.022 Ω | |
| Saturation current | 700 mA | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±10 % | |

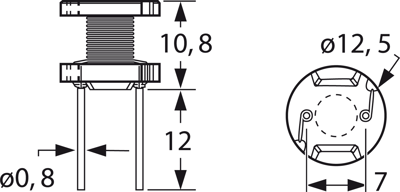

| Length | 10.8 mm | |
| Inductance | 1 mH | |
| Design | radial | |
| Version | suppressor choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bulk with 1 piece |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
