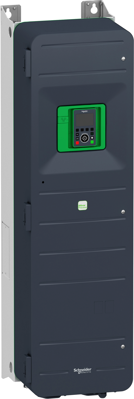

ATV650D90N4428 | Schneider Electric
Frequency converter, 3-phase, 90 kW, 480 V, 173 A for synchronous/asynchronous motors, ATV650D90N4428
Unit Price (€ / pc.)
10,068.7685 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
10,068.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10,068.7685 €
Frequency converter, ATV650D90N4428, Schneider Electric
The ATV650 is a variable speed drive with a power rating of 90 kW/125 HP, designed to operate at voltages of 380 V/480 V. It is built with an IP55 enclosure and holds marine certification, making it suitable for marine applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | frequency converter | |
| Suitable for | synchronous/asynchronous motors | |
| Power | 90 kW | |
| Number of phases | 3 | |
| Rated voltage | 480 V | |
| Output current | 173 A | |
| Width | 345 mm | |
| Height | 1250 mm | |
| Depth | 375 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
