0213.250MXEP | Littelfuse
Microfuse 5 x 20 mm, 250 mA, T, 250 V (AC), 35 A breaking capacity, 0213.250MXEP
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 15 Weeks

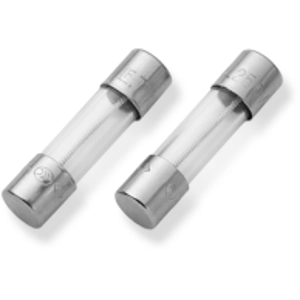

Time-lag fuse, 0213.250MXEP, Littelfuse
The 0213.250MXEP is a 5x20 mm time-lag, surge-withstand, glass body cartridge fuse that is designed to IEC specifications. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Rated voltage (AC) | 250 V | |
| Enclosure | glass tube | |
| Length | 21.5 mm | |
| Design | 5 x 20 mm | |
| Breaking capacity | 35 A | |
| diameter | 5.5 mm | |
| Version | microfuse | |
| Rated current | 250 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
