10037487 | Fischer Elektronik

Cut-to-fit connector, 10037487, FISCHER EL

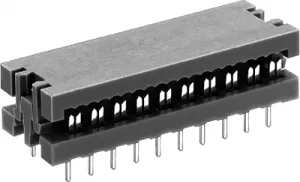

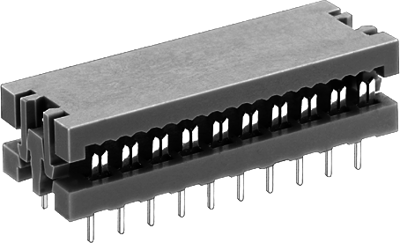

The KK 20 Z is a high-quality printed circuit connector designed with a 2.54 mm pitch and a design DIL configuration, featuring 20 poles arranged in two rows. Its robust construction includes a CuSn-alloy contact material with a Ni + 5...10 µm Sn plating on the contact sleeves, ensuring reliable electrical connections and excellent corrosion resistance. The connector supports THT soldering and accommodates ribbon cables with an excess length of at least 1 mm to the case. With dimensions of 28.1 mm (A), 25.4 mm (B), 22.86 mm (C), 7.62 mm (D), and 11 mm (E), it fits precisely into industrial electronic assemblies. The insulating body is colored RAL 7032 and rated UL 94 V-0 for flame retardancy, withstanding a temperature range from -55°C to +125°C. It offers a nominal voltage of 250 V AC (insulation group A, per VDE 0110) and a test voltage of 500 V AC, with a specific insulation resistance exceeding 10¹² Ω·m.

This connector is engineered for demanding industrial applications requiring secure and durable connections. Its compliance with VDE 0110 standards for creepage distance (≥0.7 mm) and clearance (≥0.5 mm) ensures safety and reliability in high-voltage environments. The AWG 28 to 30 conductor cross-section compatibility supports both solid and stranded wires with insulation diameters up to 1.1 mm, making it suitable for precise signal and power transmission in control systems, automation equipment, and electronic manufacturing. The IDC pattern of 1.27 mm further enhances its versatility for ribbon cable assemblies, providing efficient and stable interconnections in compact electronic designs.
