10037480 | Fischer Elektronik

Cut-to-fit connector, 10037480, FISCHER EL

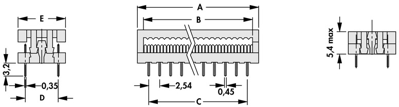

The KK 10 Z is a high-quality printed circuit connector designed with a 2.54 mm pitch and a dual-row (2-row) layout in a DIL design. It features a tin-plated CuSn-alloy contact material with a nickel and tin plating thickness of 5 to 10 µm, ensuring reliable electrical contact and corrosion resistance. The connector supports through-hole technology (THT soldering) and accommodates conductor cross-sections from AWG 28 to 30 (0.09 to 0.05 mm²) with insulation diameters up to 1.1 mm. The housing is made from a material rated UL 94 V-0 for flame retardancy and is colored in RAL 7032, offering a wide temperature range from -55°C to +125°C. It complies with VDE 0110 standards for creepage distance (≥0.7 mm), clearance (≥0.5 mm), and withstands a nominal voltage of 250 V AC with a test voltage of 500 V AC. The connector also exhibits a specific insulation resistance greater than 10¹² Ω·m and meets the KC 175 tracking resistance according to DIN 53480.

This connector is ideal for applications requiring robust and reliable electrical connections in demanding industrial and electronic manufacturing environments. Its DIL design and IDC pattern of 1.27 mm facilitate easy integration into printed circuit boards, especially where space and precise pitch are critical. The excess length of the ribbon cable to the case at ≥1 mm allows for flexible cable management. The KK 10 Z is suitable for use with both solid and stranded AWG 28 ribbon cables, making it versatile for various signal and low-power transmission tasks in control systems, instrumentation, and communication devices. Its compliance with stringent safety and performance standards ensures dependable operation in harsh conditions and long-term industrial use.
