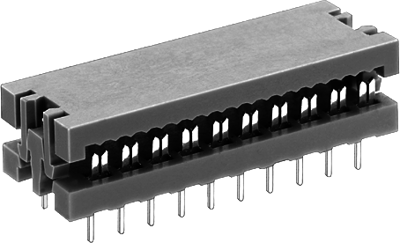

Cut-to-fit connector, 10037490, FISCHER EL

The KK 28 Z is a high-quality printed circuit connector designed with a 2.54 mm pitch and a design DIL configuration, featuring 28 poles arranged in two rows. It offers reliable THT (soldering) connection with a CuSn-alloy contact material and a tin-plated contact surface enhanced by a Ni + 5...10 µm Sn coating for optimal conductivity and corrosion resistance. The connector's insulating body, colored RAL 7032, withstands a wide temperature range from -55°C to +125°C and complies with UL 94 V-0 flammability class standards. It provides robust electrical performance with a nominal voltage of 250V AC (insulation group A, VDE 0110), a test voltage of 500 V AC, and excellent insulation resistance exceeding 10¹² Ω·m. Creepage and clearance distances meet stringent safety requirements with ≥0.7 mm and ≥0.5 mm according to VDE 0110 standards, ensuring high dielectric strength and safety in demanding environments.

This connector is suitable for applications requiring secure and precise connections in electronic assemblies, particularly where AWG 28 to 30 conductors with insulation diameters up to 1.1 mm are used. Its compatibility with both solid and stranded AWG 28 ribbon cables supports versatile wiring solutions. The IDC-pattern 1.27 mm and the connector’s dimensional specifications (A: 38.1 mm, B: 35.6 mm, C: 33.02 mm, D: 15.24 mm, E: 18.7 mm) facilitate easy integration into circuit boards and enclosures. The KK 28 Z is engineered to maintain performance and safety in industrial and electronic manufacturing environments, providing durable and reliable interconnection for complex electronic systems.
