Cut-to-fit connector, 10037486, FISCHER EL

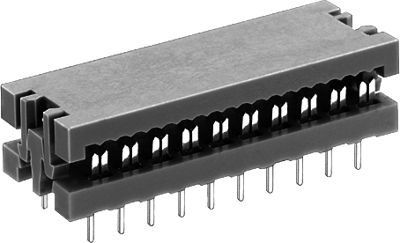

The KK 18 Z is a high-quality printed circuit connector designed with a 2.54 mm pitch and a design DIL configuration, featuring 18 poles arranged in two rows. It offers robust electrical performance with a rated voltage of 250V AC (insulation group A, according to VDE0110) and a test voltage of 500 V AC. The connector's contacts are made from a CuSn-alloy with a tin-plated surface and nickel underlayer (Ni+5...10µm Sn), ensuring reliable conductivity and corrosion resistance. The housing is constructed from a flame-retardant material (UL 94 V-0) in RAL 7032 color, capable of operating within a wide temperature range of -55°C to +125°C. It complies with stringent safety standards, including a creepage distance ≥0.7 mm and clearance ≥0.5 mm per VDE 0110, and demonstrates a high insulation resistance of over 10¹² Ω·m.

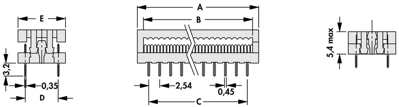

This connector is suitable for applications requiring secure and durable soldering connections using the THT (through-hole technology) method, accommodating ribbon cables with an excess length of at least 1 mm to the case. It supports conductor cross-sections of AWG 28 to 30 (0.05 to 0.09 mm²) and is compatible with both solid and stranded AWG 28 cables. The IDC-pattern 1.27 mm facilitates precise cable alignment, making the KK 18 Z ideal for industrial electronics assemblies where reliable signal transmission and mechanical stability are critical. Its compact dimensions (A=25.6 mm, B=22.9 mm, C=20.32 mm) allow integration into various printed circuit board designs, supporting efficient space utilization in complex electronic systems.
