PISTHV-151M-04 | Fastron
Power choke, SMD, 150 µH, 1.9 A, PISTHV-151M-04
Unit Price (€ / pc.)
2.5347 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
2.2253 €
100 pcs.
1.9040 €
500 pcs.
1.6541 €
1000 pcs.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale

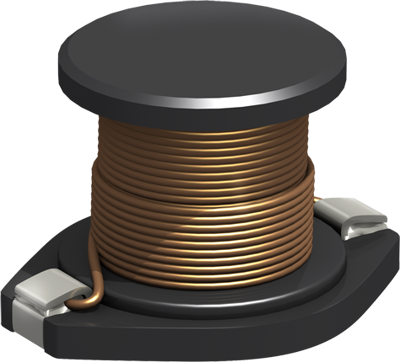

Power inductor, PISTHV-151M-04, FASTRON
The PISTHV-151M-04 is a SMD power inductor which stores energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.
Features
- Wide temperature range
- High reliability
- High rated currents
Applications
- Filtering of supply voltages, coupling, decoupling
- Automotive electronics
- Network switching systems
- DC/DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| DC resistance | 0.2 Ω | |
| Saturation current | 2.87 A | |
| DC current | 1.9 A | |
| Measuring frequency | 100 kHz | |

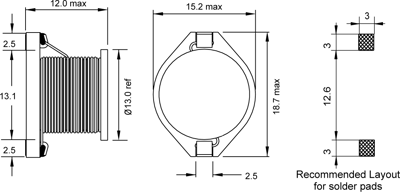

| Height | 12 mm | |
| Tolerance | ±20 % | |
| Width | 15.2 mm | |
| Length | 18.7 mm | |
| Design | SMD | |
| Inductance | 150 µH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 200 pieces |
| Customs tariff number | 85045000 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
