09HCP-220M-50 | Fastron

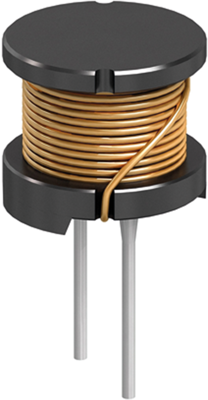

Suppressor choke, radial, 22 µH, 4.1 A, 09HCP-220M-50
Unit Price (€ / pc.)
1.2495 € *
Available in 4 Days: 100 pcs. - if ordered today
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
10 pcs.
1.0948 €
100 pcs.
0.9401 €
500 pcs.
0.8092 €
1000 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor inductor, 09HCP-220M-50, Fastron
Pin type coil
Features
- Plugable inductors offer a wide range of inductance values from 1µH to 150000µH, a high Q and also suitable for high currents and high voltages
- They come in shielded, tube and versions able to protect the winding
- They are available in reel packing and ammopack
- Rated Current up to 6.5A
Applications
- Applied in DC-DC converters and all types of electronic instruments, such as digital amplifier LPF amd signal filtering applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 4.1 A | |
| Saturation current | 4.3 A | |

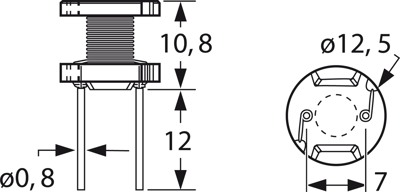

| Length | 10.8 mm | |
| DC resistance | 31 mΩ | |
| Measuring frequency | 100 kHz | |
| Version | suppressor choke | |
| Design | radial | |
| Tolerance | ±20 % | |
| Inductance | 22 µH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 200 pieces |
| Customs tariff number | 85045000 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
