09HCP-120M-50 | Fastron

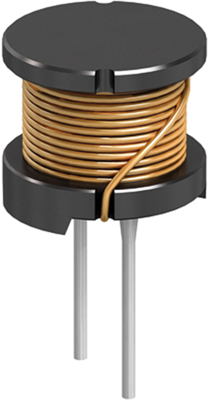

Suppressor choke, radial, 12 µH, 5 A, 09HCP-120M-50
Unit Price (€ / pc.)
1.2138 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
10 pcs.
1.0591 €
100 pcs.
0.9044 €
500 pcs.
0.7854 €
1000 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor inductor, 09HCP-120M-50, FASTRON
The 09HCP-120M-50 is a plugable inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Features
- High rated current
- High Q
Applications
- DC/DC converters
- Digital amplifier LPF
- Signal filtering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Saturation current | 5.9 A | |
| Tolerance | ±20 % | |
| Measuring frequency | 100 kHz | |
| DC resistance | 18 mΩ | |
| Version | suppressor choke | |
| Design | radial | |

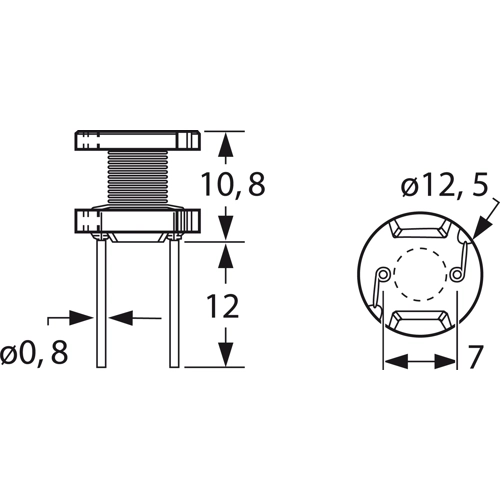

| Length | 10.8 mm | |
| Inductance | 12 µH | |
| DC current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85045000 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
