09HCP-101K-50 | Fastron

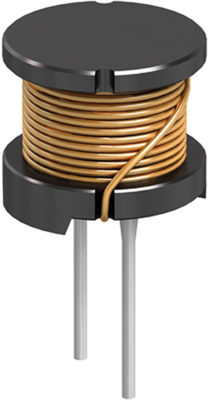

Suppressor choke, radial, 100 µH, 2.3 A, 09HCP-101K-50
Unit Price (€ / pc.)
1.5946 € *
Available: 192 pcs.
Total Price:
15.95 € *
Price list
Quantity
Price per unit*
10 pcs.
1.5946 €
50 pcs.
1.4042 €
200 pcs.
1.2495 €
800 pcs.
1.1067 €
3200 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor inductor, 09HCP-101K-50, Fastron
Pin type coil
Features
- Plugable inductors offer a wide range of inductance values from 1µH to 150000µH, a high Q and also suitable for high currents and high voltages
- They come in shielded, tube and versions able to protect the winding
- They are available in reel packing and ammopack
- Rated Current up to 6.5A
Applications
- Applied in DC-DC converters and all types of electronic instruments, such as digital amplifier LPF amd signal filtering applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 2.3 A | |
| DC resistance | 103 mΩ | |
| Saturation current | 2 A | |
| Tolerance | ±10 % | |

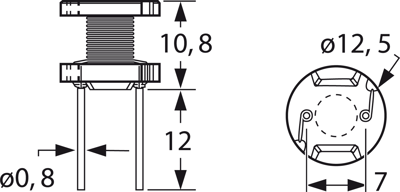

| Length | 10.8 mm | |
| Inductance | 100 µH | |
| Version | suppressor choke | |
| Design | radial | |
| Measuring frequency | 100 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | MY |
| Original Packaging | Carton with 200 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
