AA120-00205 100-240 U 1.500 | ebm-papst

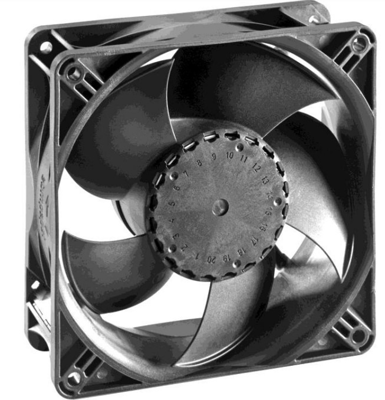

AC - Axial fan, 264 V, 120 x 120 x 38 mm, 78 m³/h, 20 dB, ball bearing, ebm-papst AA120-00205 100-240 U 1.500
Order No.: 90B1500
EAN: 4099889581416
MPN:
AA120-00205 100-240 U 1.500
VWCF119DSGHS
Series: AxiACi 120
Unit Price (€ / pc.)
57.9649 € *
Standard delivery time from the manufacturer is: 12 Weeks
AC Axial fan, AA120-00205 100-240 U 1.500, ebm-papst
Features
- Air outlet over struts
- Ball bearing
- Pollution degree 4
- IP 65 protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | AC axial fan | |
| Rated voltage | 264 V | |
| Width | 120 mm | |
| Height | 120 mm | |
| Depth | 38 mm | |
| Volume flow | 78 m³/h | |
| Sound pressure level | 20 db | |
| speed | 1500 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 1.1 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
