CPS-EC1000.060 | CAMTEC

Power supply, 60 VDC (60 to 75 VDC), 17.6 A (8 to 17.6 A), 1008 W, CPS-EC1000.060

Order No.: 25K8658
EAN: 04262552171096
MPN:
CPS-EC1000.060
3041105004CA
Series: CPS-EC

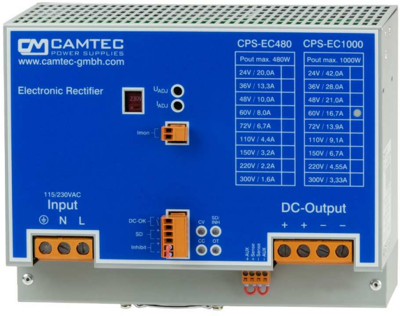

CPS-EC1000.060 CAMTEC DIN Rail Power Supplies
Image may differ
Unit Price (€ / pc.)
892.9522 € *
Available: 2 pcs.
Total Price:
892.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
892.9522 €

Precision DC Rectifier, CPS-EC1000.060, CAMTEC

The CPS-EC1000.060 is a high precision switch mode power supply for an upscale demand. The unit is C/V adjustable. The designed meets challenging applications like railway, complex drives, battery charging for DC-UPS, test-stands, machine-building and professional LED lighting. The power supply provides a low ripple-noise, a precise load-regulation and high efficiency up to 94%. High-end long-life capacitors guarantee an extended hold-up-time and an extraordinary lifetime of the power supply. The circuit design starts complex loads easily. The internal control circuit manages illegal operating conditions to prevent your system from damages.

Features

  • Real time output current monitoring
  • Sense control 1V per load line
  • Inhibit function
  • External shutdown
  • Precise dynamic response to load change
  • Designed for long life under full stress
  • Strong input filters
  • Soft start and auto-recovery
  • High reliability, shock and vibration proof
  • Overload and short circuit protection
Technical specifications
Filter Property Value
Depth 115 mm
Degree of protection (IP) IP20
Power 1008 W
Range of Output Currence 8 to 17.6 A
Output current 17.6 A
Width 200 mm
Height 156 mm
Output voltage DC 60 VDC (60 to 75 VDC)
efficiency 92 %
Input voltage AC 90-132 VAC, 184-264 VAC, 250-375 VDC
Number of outputs 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85044095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
