DLFL-0132-45D2 | SCHURTER

Linear/saturating choke, radial, 0.2 mH, 45 A, DLFL-0132-45D2

Order No.: 59P8980
EAN: 4099889003284
MPN:
DLFL-0132-45D2
Series: DLFL
DLFL-0132-45D2 SCHURTER Fixed Inductors

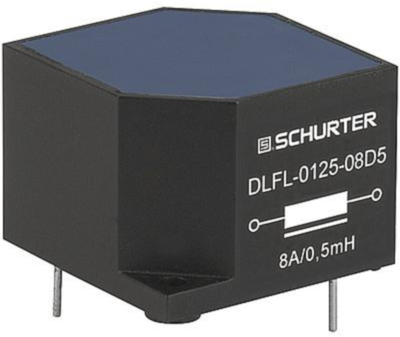

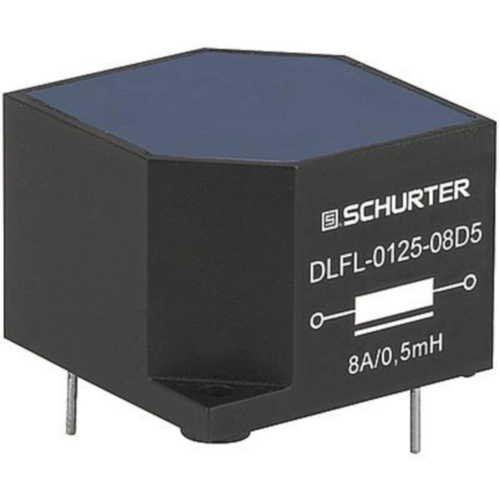

Image may differ
Unit Price (€ / pc.)
48.3854 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
48.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
48.3854 €

Linear/Saturating choke, DLFL-0132-45D2, SCHURTER

The DLFL-0132-45D2 is a linear/saturating choke that is used for energy storage in SMPS's. It is made of iron or metal powder cores with one winding.

Features

  • Linear/saturating choke
  • Flexible wire
  • Low noise development by using iron powder toroids instead of conventional iron lamination cores
  • Fully potted resign

Applications

  • Phase angle control circuits with thyristors, triacs or transistors
  • The choke acts at its optimum when it is mounted directly at the interference originator (thyristor, triac)
Technical specifications
DC current 45 A
Width 80 mm
Height 70.8 mm
Length 80 mm
DC resistance 6 mΩ
Version linear/saturating choke
Design radial
Inductance 0.2 mH
Logistics
Country of origin SK
Customs tariff number 85045000
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
