A9E18327 | Schneider Electric
Signal light, red, 230-400 VAC, IP2/IPxx B, A9E18327
Unit Price (€ / pc.)
38.5917 € *
Standard delivery time from the manufacturer is: 1 Week

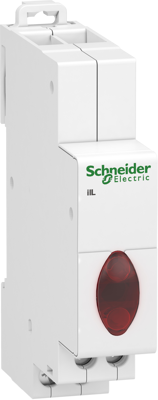

Signal light, A9E18327, Schneider Electric
This Acti9 iIL is a three-phase voltage presence indicator light. The voltage is 230 VAC to 400 VAC. The 3 red light on the front face lights up to indicate that a voltage is present. The tightening torque for the PZ1 screwdriver to connect screw connections is 1 N.m. The connection could be done with rigid copper cables from 0.5 mm² minimum up to 2 x 2.5 mm² maximum. The service life of the LED indicator light is 100000h of constant lightning efficiency. Because of the non-interchangeability of LEDs it is a maintenance-free device. The degree of protection is IP20. The pollution degree is 3.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Farbe der Beleuchtung | red | |
| Height | 82 mm | |
| Colour | white | |
| Degree of protection (IP) | IP2/IPxx B | |
| Version | indicator light | |
| Width | 18 mm | |
| Voltage | 230-400 VAC | |
| Length | 69.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85319000 |
| Country of origin | BE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
