A9E18325 | Schneider Electric

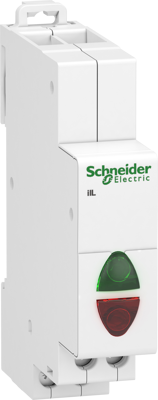

Signal light, green/red, 110-230 VAC, IP2/IPxx B, A9E18325

Order No.: 01P7225
EAN: 3606480088377
MPN:
A9E18325
Series: ilL
A9E18325 Schneider Electric Beacons
Image may differ
Unit Price (€ / pc.)
29.4049 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
29.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.4049 €

Signal light, A9E18325, Schneider Electric

This Acti9 iIL accessory is a double modular pilot light fixed on DIN rail. It has at front face a green and a red LEDs of 0.3 W with a service life of 100000 hours. The Us rated supply voltage is 100 VAC to 230 VAC at a 50/60Hz frequency, or is 110 VDC to 130 VDC.

Technical specifications
Filter Property Value
Length 69.5 mm
Height 82 mm
Colour white
Farbe der Beleuchtung green/red
Voltage 110-230 VAC
Width 18 mm
Degree of protection (IP) IP2/IPxx B
Version indicator light
Logistics
Property Value
Customs tariff number 85319000
Country of origin BE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Sustainable Yes
