031301.5HXP | Littelfuse

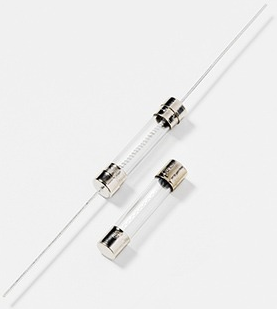

Microfuse 6.3 x 32 mm, 1.5 A, T, 250 V (AC), 100 A breaking capacity, 031301.5HXP
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 15 Weeks
Micro fuse, 031301.5HXP,LITTELFUSE
The 031301.5HXP is a slow-blow fuse that allows a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material glass body
- High breaking capacity
- RoHS-compliant and lead-free
Applications
- Supplementary protection
- Utilization equipment
- Internal circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Rated voltage (AC) | 250 V | |
| Enclosure | glass tube | |
| Length | 32 mm | |
| Design | 6.3 x 32 mm | |
| Breaking capacity | 100 A | |
| diameter | 6.3 mm | |
| Version | microfuse | |
| Rated current | 1.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
| Original Packaging | Bulk with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
