02181.25MXBP | Littelfuse
Microfuse 5 x 20 mm, 1.25 A, T, 250 V (AC), 35 A breaking capacity, 02181.25MXBP
Unit Price (€ / pc.)
0.2285 € *
Standard delivery time from the manufacturer is: 15 Weeks

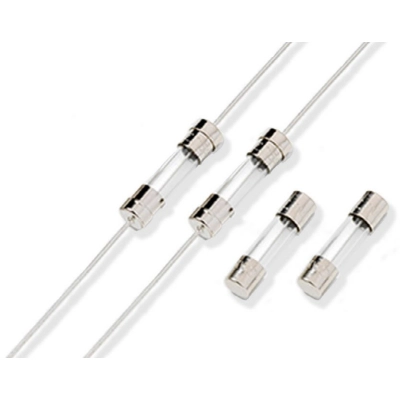

Time-lag fuse, 02181.25MXBP, Littelfuse
The 02181.25MXBP is a 5x20 mm time-lag glass body cartridge fuse designed to IEC specification. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1.25 A | |
| Rated voltage (AC) | 250 V | |
| Version | microfuse | |
| Tripping characteristics | T | |
| diameter | 5.2 mm | |
| Breaking capacity | 35 A | |
| Enclosure | glass tube | |
| Design | 5 x 20 mm | |
| Length | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
