0218008.VXP | Littelfuse
Microfuse 5 x 20 mm, 8 A, T, 250 V (AC), 80 A breaking capacity, 0218008.VXP
Unit Price (€ / pc.)
4.3435 € *
Standard delivery time from the manufacturer is: 15 Weeks

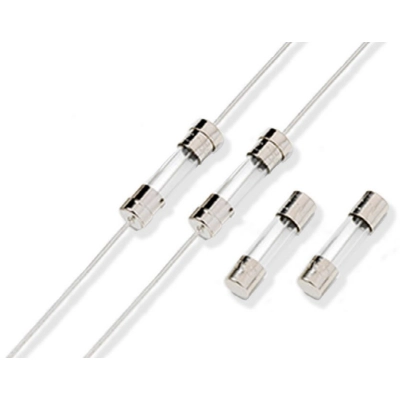

Time-lag fuse, 0218008.VXP, Littelfuse
The 0218008.VXP is a 5x20 mm time-lag glass body cartridge fuse designed to IEC specification. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 80 A | |
| Enclosure | glass tube | |
| diameter | 5.2 mm | |
| Rated voltage (AC) | 250 V | |
| Version | microfuse | |
| Tripping characteristics | T | |
| Design | 5 x 20 mm | |
| Length | 20 mm | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
