0216010.MXEP | Littelfuse

Microfuse 5 x 20 mm, 10 A, F, 250 V (AC), 1.5 kA breaking capacity, 0216010.MXEP

Order No.: 74P8461
EAN: 4099891853266
MPN:
0216010.MXEP
Series: 216
0216010.MXEP Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.3035 € *
Available: 1,000 pcs.
Available in 4 Days: 1,000 pcs. - if ordered today
Total Price:
303.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.3035 €

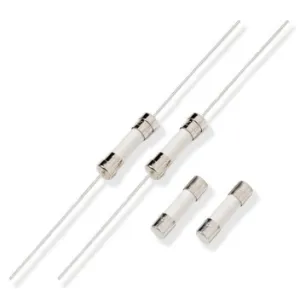

Fast-acting fuse, 0216010.MXEP, Littelfuse

The 0216010.MXEP is a 5x20 mm fast-acting ceramic body cartridge fuse designed to IEC specification. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.

Technical specifications
Filter Property Value
Tripping characteristics F
Design 5 x 20 mm
Breaking capacity 1.5 kA
Version microfuse
Rated voltage (AC) 250 V
Rated current 10 A
Length 21.5 mm
diameter 5.5 mm
Enclosure ceramic tube
Logistics
Property Value
Country of origin CN
Customs tariff number 85361010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
