0216.315MXEP | Littelfuse
Microfuse 5 x 20 mm, 315 mA, F, 250 V (AC), 1.5 kA breaking capacity, 0216.315MXEP
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 19 Weeks
Fast-acting fuse, 0216.315MXEP, Littelfuse

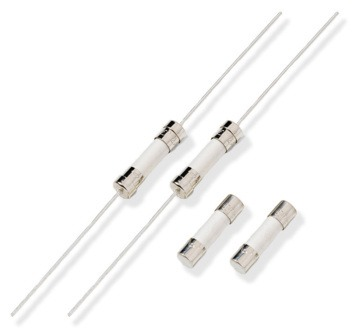

The 0216.315MXEP is a 5x20 mm fast-acting ceramic body cartridge fuse designed to IEC specification. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | ceramic tube | |
| Breaking capacity | 1.5 kA | |
| Rated voltage (AC) | 250 V | |
| Design | 5 x 20 mm | |
| diameter | 5.6 mm | |
| Tripping characteristics | F | |
| Version | microfuse | |
| Length | 21.5 mm | |
| Rated current | 315 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
