0216.100TXP | Littelfuse

Microfuse 5 x 20 mm, 100 mA, F, 250 V (AC), 1.5 kA breaking capacity, 0216.100TXP

Order No.: 42G1651
EAN: 4099889084443
MPN:
0216.100TXP
Series: 216
0216.100TXP Littelfuse Micro Fuses

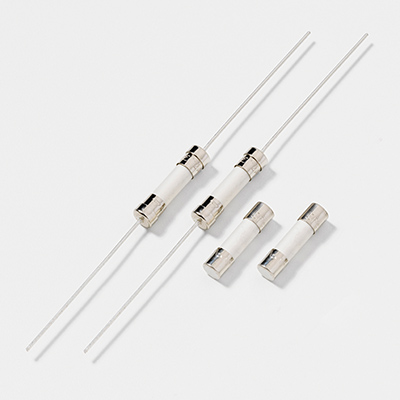

Image may differ
Unit Price (€ / pc.)
1.0472 € *
Available: 20 pcs.
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

Micro fuse, 0216.100TXP, LITTELFUSE

The 0216.100TXP is a fast-acting fuse with holder that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Material ceramic tube
  • High rated voltage
  • Axial or cartridge model
  • High breaking capacity

Applications

  • Supplementary protection
  • Utilization equipment
  • Internal circuits
Technical specifications
Filter Property Value
Tripping characteristics F
Rated voltage (AC) 250 V
Enclosure ceramic tube
Length 20 mm
Design 5 x 20 mm
Breaking capacity 1.5 kA
diameter 5 mm
Version microfuse
Rated current 100 mA
Logistics
Property Value
Country of origin CN
Customs tariff number 85361010
Original Packaging Carton with 10 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
