10019306 | Fischer Elektronik
Extruded heatsink, (L x W x H) 37.5 x 29 x 12 mm, 12 to 7.5 K/W, black anodized, 10019306
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.6065 € *
Available: 38 pcs.
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4875 €
25 pcs.
1.3923 €
50 pcs.
1.2614 €
*incl. VAT plus shipping costs
Subject to prior sale

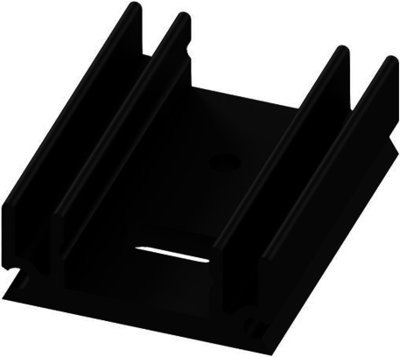

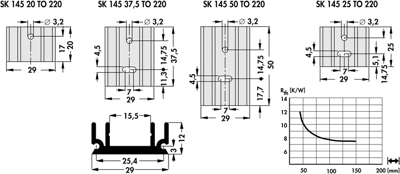

Profile heatsink with universal perforation grid, type Fischer SK 145.
Made of black anodized aluminum. Perforation. for example, for TO-220 package. Meter section for orders as of 10 items on request.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 7.5 K/W | |
| Max. heat resistance | 12 K/W | |
| Length | 37.5 mm | |
| Width | 29 mm | |
| Height | 12 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | TO-220 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
