PISA4720-221M-04 | Fastron

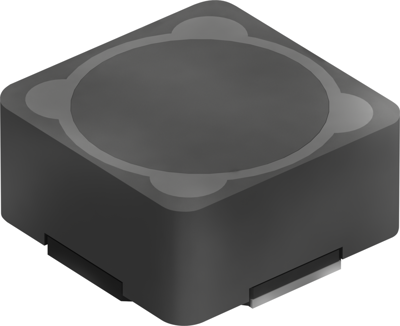

Power choke, SMD, 220 µH, 800 mA, PISA4720-221M-04
Unit Price (€ / pc.)
1.9516 € *
Available in 4 Days: 100 pcs. - if ordered today
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
10 pcs.
1.8088 €
100 pcs.
1.7017 €
500 pcs.
1.6065 €
1000 pcs.
1.5351 €
*incl. VAT plus shipping costs
Subject to prior sale
Power inductor, PISA4720-221M-04, FASTRON
The PISA4720-221M-04 is a SMT power inductor which stores energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.
Features
- High rated current
- High reliability
Applications
- Power supplies
- Coupling and Decoupling
- LCD TV
- Norebooks
- DC/DC converters
- Network switching systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| DC resistance | 400 mΩ | |
| DC current | 800 mA | |
| Measuring frequency | 1 kHz | |

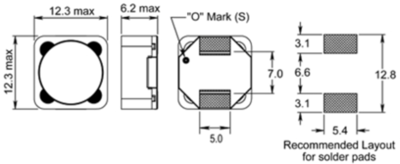

| Height | 6.2 mm | |
| Tolerance | ±20 % | |
| Width | 12.3 mm | |
| Length | 12.3 mm | |
| Design | SMD | |
| Inductance | 220 µH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85045000 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
