6RCC-6R0M-00 | Fastron

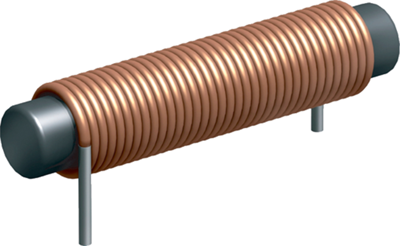

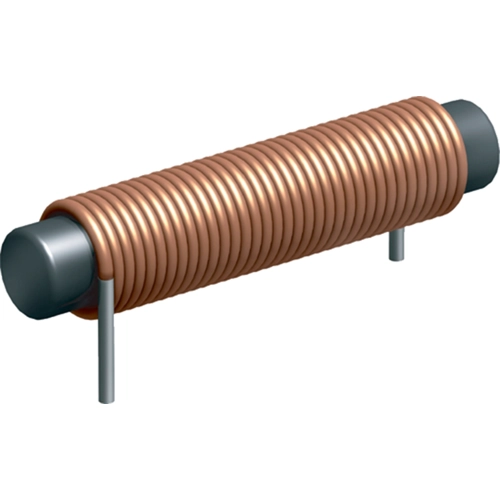

Suppressor choke, horizontal, 6 µH, 7 A, 6RCC-6R0M-00
Unit Price (€ / pc.)
2.5823 € *
Available in 4 Days: 130 pcs. - if ordered today
Total Price:
2.58 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5823 €
10 pcs.
1.8445 €
100 pcs.
1.5827 €
1000 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
Rod core chokes, type Fastron .RCC.
For applications in the automotive industry, interference suppression for electrical motors, with ferrite core
Type 6RCC.
Measuring frequency (up to 6
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 25 mm | |
| DC current | 7 A | |
| Saturation current | 17 A | |
| Inductance | 6 µH | |
| Measuring frequency | 1 MHz | |
| Design | horizontal | |
| DC resistance | 8 mΩ | |
| Version | suppressor choke | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 1 piece |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
